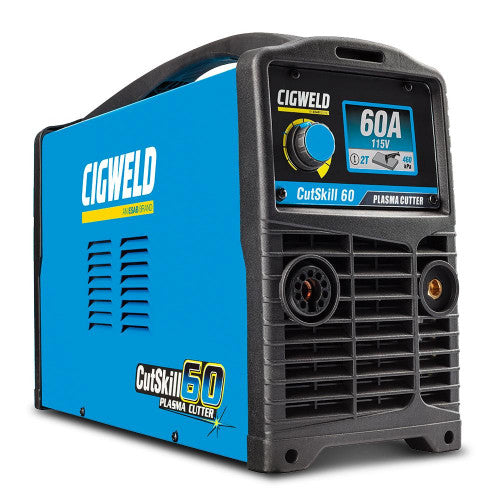

Cigweld 1-1601-60 CutSkill 60 Plasma Cutter System

: Welding Equipment

: 1-1601-60

: Cigweld

Regular price $1,549.00




CIGWELD has now officially changed plasma cutting forever, with the launch of the new range of CutSkill Manual Plasma machines. CutSkill 60...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

CIGWELD has now officially changed plasma cutting forever, with the launch of the new range of CutSkill Manual Plasma machines. CutSkill 60 machines from CIGWELD feature a user interface that not only incorporates the latest in colour LCD technology, but also simplifies the entire cutting set up process.

Features:
Fully Compliant to AS 60974.1-2006. Enclosure rated to IP23S.
2.8” Colour LCD Screen Allows for full interactive digital control
Air Compressor Recommended air compressor required: Cutskill 35 & 45 - 730kPa,12 CFM Cutskill 60 - 800kPa,12 CFM
CutSkill 60A Plasma Torch
Gouging Tip Gouging Tip 1.1mm

Specifications:
Power: 240V, 1Ph, PFC, 15A Minimum recommended circuit breaker is 2
Duty Cycle: 20% @ 60A**
Current range: 20-60 Amps
Input Air Required: 800kPa, 110LPM
Generator required: 15kVA
Mid Steel clean cut: 20mm
Mild steel severance: 28mm
Stainless clean cut: 14mm
Aluminium clean cut: 12mm
Dimensions (L x W x H): 437mm x 176mm x 324mm
Weight: 13.2kg

Warranty:
3 Year warranty covered by Cigweld
