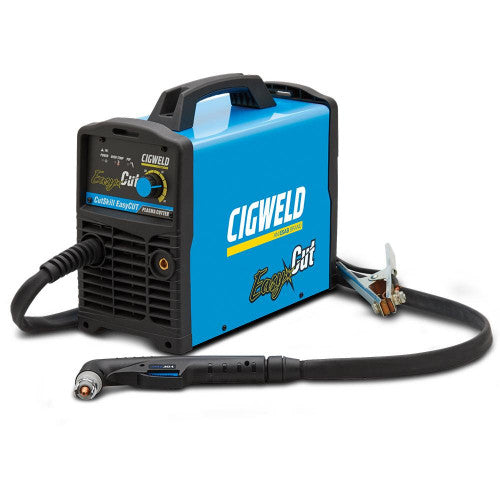

Cigweld 1-1601-EC CutSkill EasyCut Plasma Cutter Set

: Welding Equipment

: 1-1601-EC

: Cigweld

Regular price $579.00




Cigweld 1-1601-EC CutSkill EasyCut Plasma Cutter Set Meet the new Cigweld CutSkill EasyCut Plasma Cutter – serious performance but so easy to...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Meet the new Cigweld CutSkill EasyCut Plasma Cutter – serious performance but so easy to use! At Cigweld, we aim to develop and deliver products that bridge the gap in customer requirements. With the CutSkill EasyCut Plasma Cutter we’ve done just that – a simple, no frills plasma cutter that is not only easy to use but is backed by serious power. Perfectly suited to the DIY cutting user, the EasyCut is still loaded with features – Parts In Place protection to protect your consumables and torch from arc damage, adjustable amperage to suit the plate thickness you’re trying to cut, and high grade consumables built for durability saving you time and money!

Includes:
1 x CutSkill 30A Plasma Torch
1 x Work Cable and Clamp
1 x Wrench for Air Filter
1 x 1/4” Nitto Air Line Connector
1 x Operating manual

Features:
Removable air filter with purging valve - The air filter can be purged at any time by using the purging valve and is also removable for cleaning. It is housed in a concave inset in order to prevent damage.
Parts in place (pip) protection - If the torch consumables are not correctly installed the torch will not arc, increasing the lifespan of the consumables and torch itself.
Internal regulator - The regulator is internal and air through the torch is managed automatically by the plasma unit. This removes the need to adjust air pressure for individual cutting requirements.
Torch - The EasyCut Plasma Cutter comes complete with a direct connected 30Amp torch with a 4m lead for greater reach, comfort and ergonomics designed specifically for the CutSkill plasma cutting range. The torch includes a safety latch in order to prevent risk of accidental arc.
Consumables - Using the same high grade consumables as the CutSkill 35 you can rest easy knowing you’re getting the very best quality and longevity from your consumables.
Accessories - The inline Air Filter is designed to prevent all moisture, plus oil and dirt down to 0.85 microns from passing through your air line to the plasma unit. The Circle Cutting Guide allows for circle cutting up to a radius of 400mm. The cutting guide can be affixed to the work plate by either of the included Straight, Magnetic or Screw Pivots.

Specifications:
Input Power: 240V, 1PH, 10A
Mild Steel, Stainless Steel & Aluminium:
Genuine Cut: 10mm
Severance Cut: 12mm
Pierce Cut: 8mm
Duty Cycle: 15% @ 30A
Current Range: 15-30amps
Input Air Required: 800kpa, 150lpm
Generator Required: 7.5kva
Dimensions ( L x W x H): 380mm x 175mm x 325mm
Weight: 10.5kg

Warranty:
1 Year Limited Warranty on Power Source Covered by Cigweld Australia
