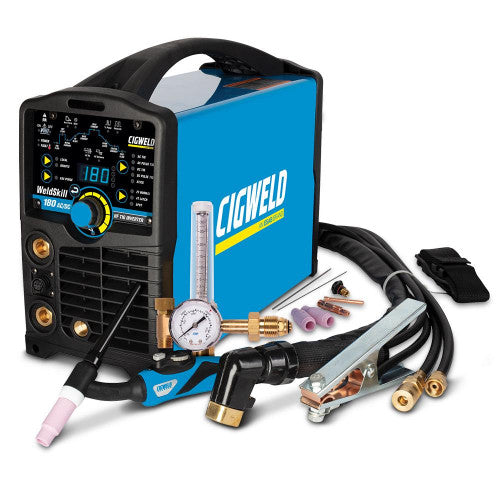

Cigweld W1008195 (Weldskill 180 ACDC) WeldSkill 180AC/DC TIG Inverter Welder
Features:
WeldSkill 180AC/DC HF TIG Inverter Power Source
New Blue LED’s displays
4M TIG Torch
10amp Plug
Fan Cooled
Can be operated from an 8 kva generator
Specifications:
Protection Class: IP23S
Phases: 1
Welder type: Inverter Power Source
Cooling: Fan Cooled
Voltage: 240V +/- 15%
Nominal Supply Frequency: 50/60Hz
Welding Current Range (DC STICK Mode): 10 - 130A
Welding Current Range (DC TIG Mode): 10 - 180A
Effective Input Current (I1eff): 10A
Maximum Input Current (I1max): 26A
Single Phase Generator Requirement:
8kVA (at 0.8 power factor)
6.4kW (at 1.0 power factor)
Output Terminal Type: Dinse Style 50
TIG (GTAW):
Welding Welding Output, 40ºC, 10 min:
180A @ 15%, 17.2V
90A @ 60%, 13.6V
70A @ 100%, 12.8V
Open Circuit Voltage: 63V
STICK (MMAW):
Welding Output, 40ºC, 10 min:
130A @ 15%, 25.2V
65A @ 60%, 22.6V
50A @ 100%, 22V
Open Circuit Voltage (VRD On): <26V
Open Circuit Voltage (VRD Off): 63V
Australian Standards: AS 60974.1-2020 / IEC 60974-1
Dimensions (L x W x H): 430mm x 176mm x 324mm
Weight: 12kg
|
