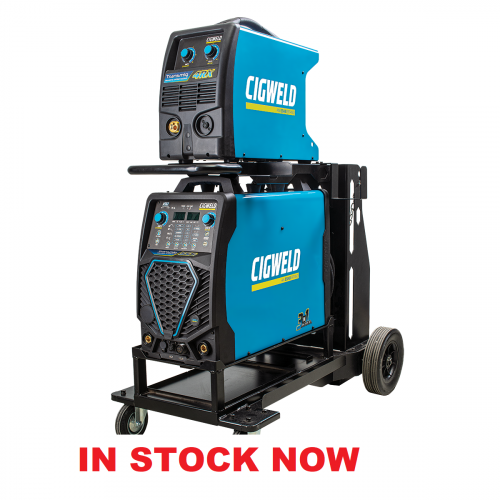

Cigweld W1400555 Transmig 555i Remote Plant

: Welding Equipment

: W1400555

: Cigweld

Regular price $6,780.00

The new CIGWELD TRANSMIG 555i Multi Process Heavy Duty Welding Package, boasts a powerful 555amp inverter block. Loaded with advanced features across...


Have a Question?

Be the first to ask a question about this.

Ask a Question

The new CIGWELD TRANSMIG 555i Multi Process Heavy Duty Welding Package, boasts a powerful 555amp inverter block. Loaded with advanced features across MIG, STICK, TIG and GOUGING processes, the TRANSMIG 555i has a rated duty cycle of 555A @ 40% and 500A @ 60%. The 555i complies with the European Union ECO-Power regulations, so not only do you get more output amperage for your buck, but you pay less to run this 555i machine compared to a lot of older machines. With pre-programmed synergic lines, by simply selecting the material type, comsumable diameter and plate thickness will give you the right parameters to get your welds done right!

The Transmig 555i has been designed to be durable and rugged to suit the most demanding of environments across heavy fabrication, mining, oil and gas, civil construction, ship building and defence, structural steel set-ups and repair and maintenance.

The Transmig 4RX Wirefeeder is designed for use with the Transmig 555i Multi Process Welder - fitted with a Euro MIG Gun Connection it is a robust 4 Roll Feeder that can operate with 200mm and 300mm spools. The single tension arm drive system is simple to operate for easy changing of wire and feedrolls.

Transmig 555i Inverter Power Source
Transmig 4RX Wire Feeder (Feed Rolls 0.9/1.2mm V Groove Fitted)
Interconnection Lead Kit, 8m
MIG Gun Tweco Fusion 400, 3.6m
Regulator/Flowmeter - Comet Professional Argon Regulator / Flow Meter
Work Clamp, 4m Lead
Transmig 355i/555i Trolley - with inbuilt cylinder carrier

Input Supply: 415VAC +/- 15%, 3 Phase, 50/60Hz, 27A
3-in-1 Multi Process - Offers outstanding welding results across MIG, STICK, TIG
Suitable for carbon arc gouging
Heat Control - Allows user to tweak voltage for optimal performance (in AUTO SET)

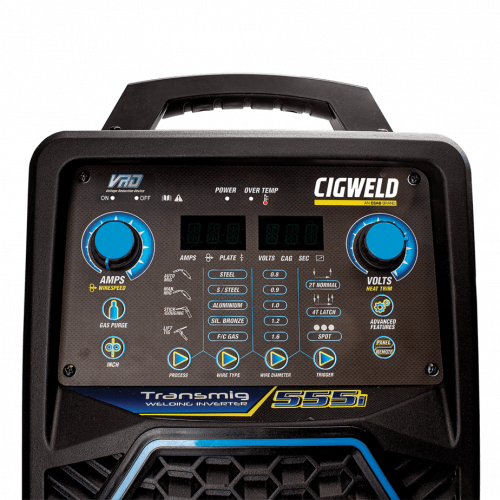

Single push button display for easy navigation
Switch between the adjustment of Wire Feed Speed and Voltage Control from either the Power Source or 4RX Wirefeeder
Arc Control - Less spatter, stronger arc and increased penetration
Adjustable Burnback Control - Adjusts stick-out and prevents wire from burning back
Gas Purge Button - in MIG Mode
Easy Access Gas Wire Inch button on front display enables user to feed wire without wasting shielding gas
Plate Thickness Control: Making setup a breeze
Recommended generator required: 3-phase 35kVA at 0.8 Power Factor

Welder Type: Multi Process Inverter Power Source
Number of Phases: 3
Nominal Supply Voltage: 415 VAC ± 15%
Nominal Supply Frequency: 50 / 60Hz
Cooling: Fan Cooled
Protection Class: IP23S
Welding Environment Classification: Suitable for welding in category C environments; suitable for indoor and outdoor welding
Open Circuit Voltage (VRD On): <35 V DC
Supply Lead: 4 mm²
Minimum Three Phase Generator Recommendation: 35kVA (at 0.8 Power Factor)
MIG (GMAW) Welding Output, 40°C, 10min:
555A @ 40%, 41.8V
500A @ 60%, 39V
400A @ 100%, 34V
STICK (MMAW) / GOUGING Welding Output, 40°C, 10 min:
555A @ 40%, 42.2V
500A @ 60%, 40 V
400A @ 100%, 36 V
TIG (GTAW) Welding Output, 40°C, 10min:
555A @ 40%, 32.2 V
500A @ 60%, 30 V
400 A @ 100%, 26 V
Power Source Dimensions (L x W x H): 700mm x 287mm x 517mm
Wirefeeder Plant Dimensions (L x W x H): 453mm x 238mm x 553mm
Power Source Weight: 49kg
Wirefeeder Plant Weight: 18kg

3 Year Limited Warranty Covered By Cigweld Australia
