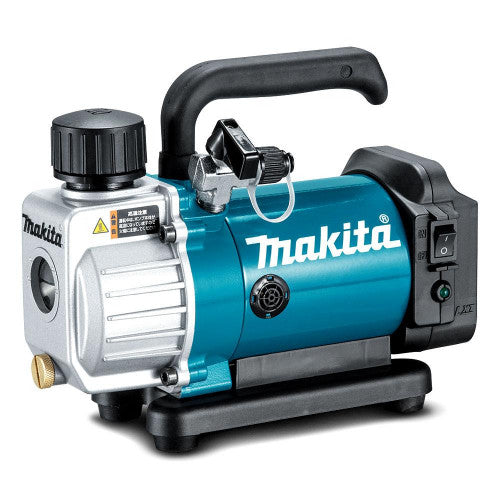

The Makita 18V Vacuum Pump, DVP180Z, is designed to suit the needs of air conditioning technicians when evacuating a system suitable for small residential air conditioning, vehicle air conditioning and appliances such as refrigerators and freezers. The DVP180Z features long runtime of up to 50 minutes, large sight glass to easily check oil level and is compact and light weight at only 2.9kg. Being a cordless pump makes this unit convenient in places where electrical power is not available or difficult to access.
Features:
Oil fill / Exhaust cap has a large opening for easy pump oil replacement. Built in mesh filter prevents vacuum pump oil from scattering from exhaust port
Oil gauge level can be viewed through sight glass to allow user to check oil level and condition
Drain port is easy to access for draining of vacuum oil after every usage
Intake shutoff valve provides the user with the added convenience of shutting on the pump to the manifold or vacuum hose
LED power lamp light illuminates to display to the user when the power is on
Lightweight design at only 2.9kg, the DVP180Z is convenient to use in tight spaces or where AC is not available
Specifications:
Voltage: 18V
Compression type: Oil rotary type (vane type), single stage
Flow rate: 50L/min
Ultimate vacuum: 20Pa (150 micron)
Motor speed: 3840
Oil capacity: 115ml
Inlet port: 5/16"
Weight: 2.9kg
Frequently Asked Questions:
How much oil do I use to fill the pump?
Add oil until the oil level is between the upper and lower level lines of the sight glass. Approximately 115ml
How often should I change the oil?
It is recommended to change the oil after 20 hours of usage to protect pump components from contaminants pulled into the pump. However it is recommended to change the oil after every usage to achieve optimum performance
How do I replace the oil?
Open the intake shut off valve and operate the pump for 1 to 2 minutes to warm up the oil. Turn off the pump, remove the drain plug and drain the oil. Dispose of the old oil in accordance with local regulations
Warranty:
3 Years Warranty Covered By Makita Australia
|
