With sliding function for wide work pieces.
For single phase alternating current

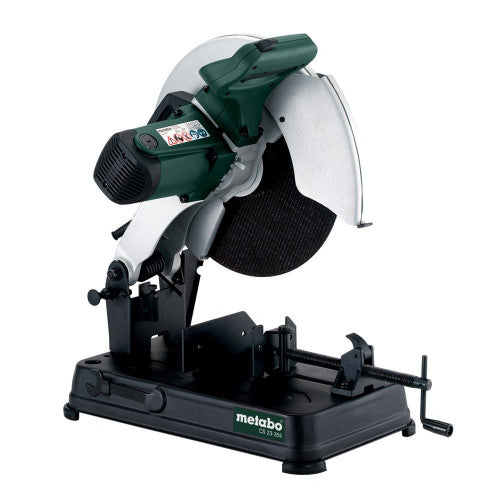

Powerful and fast cutting for profiles, pipes and rods made of steel, cast iron, aluminum and other non-ferrous metals.
Motor and gear with ball bearing and designed for high loads
Spindle lock for easy disc change
Quick clamping device with variable mitre conversion from -15? up to 45?
Easy to transport due to built-in handle and locking device
Swiveling blade guard
Adjustable spark guide plate
Bottom access guard
Adjustable depth guide
Grinding wheels ( x bore): 355mm x 25.4mm
Torque: 18 Nm
No-load speed: 4,000/min
Rated input power: 2,300W
Max. cutting dimension:
Steel bars: 65mm
Steel sections: 115mm x 130mm
Max. opening of vice jaws: 238mm
Dimensions of the base plate: 468mm x 282mm
Transport height: 400mm
