MIG / Stick / TIG Welder - WELDFORCE

: Welding Equipment

: WC-210MST

: Weldclass

Regular price $2,099.00




WELDFORCE 210 MST MIG / STICK / TIG WELDER WELDCLASS WC-210MSTDesigned and manufactured in Europe, there's a lot more to the Weldforce...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

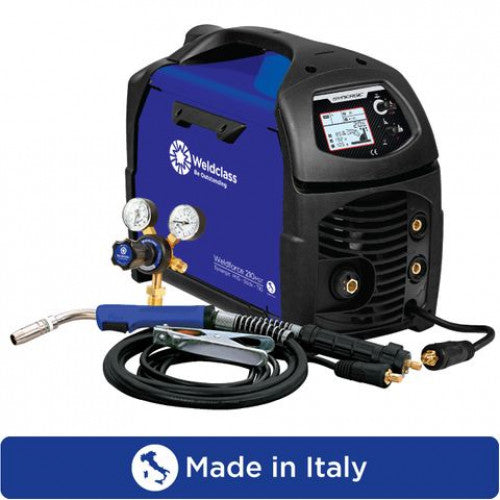

WELDFORCE 210 MST MIG / STICK / TIG WELDER WELDCLASS WC-210MST
Designed and manufactured in Europe, there's a lot more to the Weldforce 210MST than first meets the eye. Impressive MIG output of up to 210 amps for welding up to 10mm steel, dual input modes to allow use on 10A plug (fitted) or 15A plug, leading 4 year warranty and 30-day money back satisfaction guarantee are just the start. Choice of 4 welding modes; manual MIG, synergic MIG (select wire type & material thickness and the machine takes care of the settings), Stick/MMA or lift-arc TIG. Plus interactive LCD screen controls, VRD safety feature and generator compatability - all in a compact 10kg package. Comes with European-made 4m heavy-duty 250A Euro-fit MIG torch, gas regulator, drive rollers for solid & gasless wires, 3m earth lead & 10A plug fitted.

Functions:
Manual MIG (Gas / Gasless) - Voltage and wire speed adjusted manually
Synergic MIG (Gas / Gasless) - Set wire type/size & material thickness and machine will set parameters automatically
Stick / MMA
TIG (Lift-Arc)

At A Glance:
Made in Europe
210A max MIG output
Welds up to 10mm Mild Steel (max MIG capacity)
Fitted with 10A 240V plug*
Key Features:
Made in Italy to Weldclass specifications, in one of Europe's largest & most experienced welding machine manufacturing plants
Leading 4 year warranty**
30-day Money Back Guarantee***
Dual Input Modes to allow use with either 10A plug (fitted) or 15A plug (optional)*
LCD display - Interactive & easy to use
Manual or Synergic MIG controls (enter wire type/size & material thickness and machine will set parameters automatically)
26+ MIG Programs - for welding with different wires & materials
Very compact and portable, weighs 10kg
Takes 1kg (D100mm) or 5kg (D200mm) spools
Generator Compatible - min 7kva, ideal 10+kva
VRD function for safe & compliant Stick/MMA welding
MIG Adjustments include: Inductance, Soft Start, Burnback, Post-Gas Time, 2T/4T Trigger, Spot Weld Time
Stick/MMA Adjustments include: Hot-Start %, Arc-Force %
Application & Capability Info
MIG welding <210A in 15A mode, or <170A in 10A mode, with solid mild steel (0.6-1.0mm), gasless flux-cored (0.8-1.2mm), stainless-steel (0.8-1.0mm), aluminium (0.8-1.0mm), & bronze/brazing (0.8-1.0mm) wires
Stick/MMA welding <150A in 15A mode, or <130A in 10A mode, with most types of common electrodes (2.0-3.2mm), including steel, stainless-steel, hardfacing & more
TIG welding (DC lift-arc) <150A in 15A mode, or <130A in 10A mode, of steel, stainless, copper & chrome molly up to 3mm max thickness (NOT suitable for TIG welding of aluminium - this requires AC/DC TIG capability, such as the Weldforce 202T)

Includes:
MIG Torch H/Duty BZL 25 4m (made in Europe)
Gas Regulator (made in Europe)
Earth Lead 3m
Driver Roller for 0.6/0.8/0.9mm steel/solid wire
Driver Roller for 0.8/0.9/1.2mm gasless wire
Optional accessories:
Stick welding lead (# WC-06231)
TIG Torch 17V 4m
T100 Welding Trolley (# WC-06235)

Common spare parts:
MIG Torch Spares (BZL 25)
Drive Rollers
