Tig Welder Weldforce 202T Ac/Dc Pulse Weldclass

: Work Shop

: WC-202T

: Weldclass

Regular price $4,499.00




Tig Welder Weldforce 202T Ac/Dc Pulse Weldclass WC-202TEverything you expect from a European made 200A AC/DC TIG and then some! Outstanding TIG...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

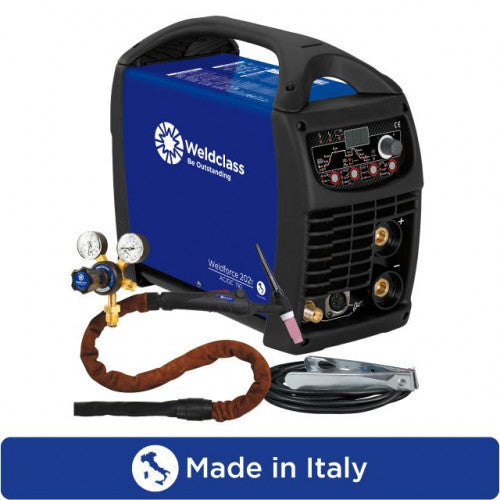

Tig Welder Weldforce 202T Ac/Dc Pulse Weldclass WC-202T
Everything you expect from a European made 200A AC/DC TIG and then some! Outstanding TIG welding results on aluminium, steel & stainless, very easy-to-use controls, Dual input modes to allow use on 10A plug (fitted) or 15A plug, 200A output, Leading 4 year warranty and 30-day money back satisfaction guarantee are just the start.
Stand-out features include: Easy-Pulse mode for beginners, Bi-Level manual toggle-from-torch mode, and unique SmartStart setting for very smooth arc ignition on aluminium. Plus European-made 8m #26 200A Super-Flex TIG torch with remote current adjustment, optional foot control & impressive Stick/MMA performance with VRD.

At a glance:
200a max output (tig)
Weld with up to 3.2mm tungsten electrodes
Fitted with 10a 240v plug*
Comes standard with 8m high quality european tig torch

Application & Capability Info:
Tig ac welding <200a in 15a mode, or <180a in 10a mode, of aluminium and aluminium alloys up to 4-5mm max thickness
Tig dc welding <200a in 15a mode, or <180a in 10a mode, of steel, stainless, copper & chrome molly up to 4-5mm max thickness
Stick/mma welding <160a in 15a mode, or <150a in 10a mode, with most common rods/electrodes (2.0-4.0mm)

Key Features:
Made in italy to weldclass specifications, in one of europe's largest & most experienced welding machine manufacturing plants
Leading 4 year warranty**
30-day money back guarantee***
Dual input modes to allow use with either 10a plug (fitted) or 15a plug (optional)*
Easy-to-use lcd digital controls with further settings info on top panel for quick reference
European 8m #26 tig torch with remote amp controls, flexi head, super-flex cable & leather cable cover
Easy pulse mode for begginer operators
Smart-start ignition system for ultra smooth & reliable arc starting on aluminium
Bi-level mode allows manual toggling between 2 set current levels from the torch
Generator compatible - min 7kva, ideal 10kva+
Optional foot control (part no wc-06370)
Vrd function for safe & compliant stick/mma welding
Compact, robust & portable (weighs 11kg)
Ip23 protection - superior resistance to moisture & particles

Functions:
Arc ignition: hf or lift-arc
Slope up/down: 0-10s
Pre & post gas: 0-10s
Pulse modes: standard & easy (automatic arc settings for simple operation)
Non-pulse modes: standard & bi-level (allows manual toggle between 2 current levels from the torch)
Frequency: pulse 1–99hz / non-pulse 10-200hz
Pulse balance/width: 1-99%
Non-pulse balance (ac square-wave): -80% (max penetration) to +80% (max cleaning)
Ac smart-start: adjusts energy boost level when starting arc in ac
Trigger modes: 2t, 4t, spot
Spot weld timer adjustment 0.01–10s
Mma hot-start adjustment 0-100%
Mma arc-force adjustment 0-100%

Includes:
Tig torch #26 flexi 8m (remote control)
Gas regulator (made in europe)
Earth lead 4m
Parts kit & tungstens - 1.6 & 2.4mm

Common accessories & spare parts:
Foot controller (# wc-06370)
Stick welding lead (# wc-06233)
T100 welding trolley (# wc-06235)
Tig torch spares
Tungsten electrodes
