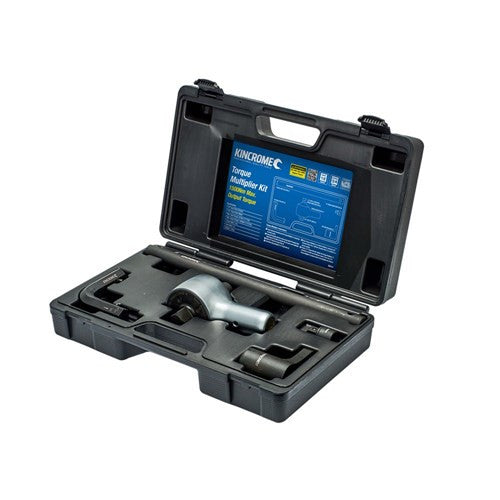

Professional quality tool designed to provide mechanical advantage in applying high torque value
Ideal for when high torque applications are required or where space is limited
All pieces are set in a protective blow mould case
CONTENTS
1:6.5 Torque Multiplier
2 x 1/2" Breakaway Adaptors
380mm Reaction Bar
90 Degree Reaction Bar
90 Degree Reaction Base
L-Type Hex Key
Protective Blow Mould Case
TECHNICAL SPECIFICATIONS
Input Drive (Female) 1/2"
Output Drive (Male) 3/4"
Max Input Torque 231Nm (171 ft-lb)
Max Output Torque 1500Nm (1110 ft-lb)
Torque Ratio 1:6.5
Gear Ratio 1:9
Weight 13.5kgProfessional quality tool designed to provide mechanical advantage in applying high torque value
