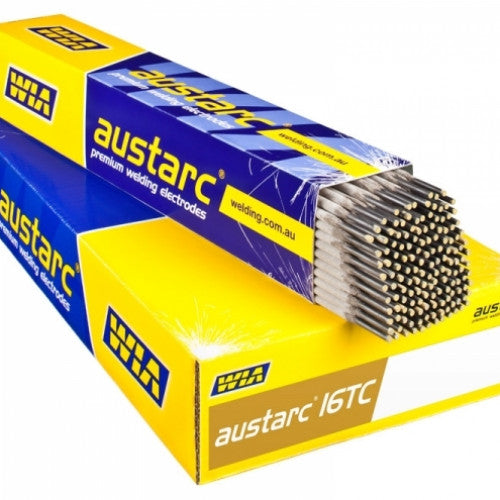

WIA Electrodes Low Hydrogen 2.5mm - 2.5Kg

: Welding Consumable

: 16TC25

: WIA

Regular price $57.00




Smooth running, basic low hydrogen electrode, developed for all positional (except vertical down) welding, using AC or DC power sources. It has...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Smooth running, basic low hydrogen electrode, developed for all positional (except vertical down) welding, using AC or DC power sources. It has exceptional arc stability and weldability and delivers high quality weld deposits with reliable notch toughness to -40°C.

Austarc 16TC is manufactured using a unique twin coating extrusion process, which means all the arc stabilising elements are concentrated in the inner coating. This delivers significantly improved arc stability and control for all applications.

TYPICAL APPLICATIONS

The ideal hydrogen controlled electrode for welding carbon, carbon-manganese and low alloy high strength steels used in a multitude of critical and non-critical applications.
Typical applications include pipe welding, single sided weld joints, highly restrained joints, maintenance applications, buffer layer prior to hard surfacing build-up, structural steel and sub zero temperature applications.

Sub Zero Temperature Applications
Structural Steel
Single Sided Weld Joints
Pipe Welding
Maintenance Applications
Highly Restrained Joints
Buffer Layer Prior to Hard Surfacing Build-Up

PROCESSES

SMAW
MMAW

CLASSIFICATION

AS/NZS 4855-B - E49 16 A U H10
AWS A5.1: E7016 H8

SPECIFICATIONS

Typical All Weld Metal Chemical Analysis
C: 0.05
Mn: 1.16
Si: 0.42
P: 0.013
S: 0.006
Fe: Bal

Typical All Weld Metal Mechanical Analysis
Yield Strength: 460 Mpa
Tensile Strength: 560 MPa
Elongation: 28%
CVN Impact Values: 130J @ -20°C, 110J @ -40°C
